7 Inch Motorcycle TFT LCD Display – 1000+ Nits Sunlight Readable

7 Inch Sunlight-Readable TFT LCD for Motorcycle Dashboards

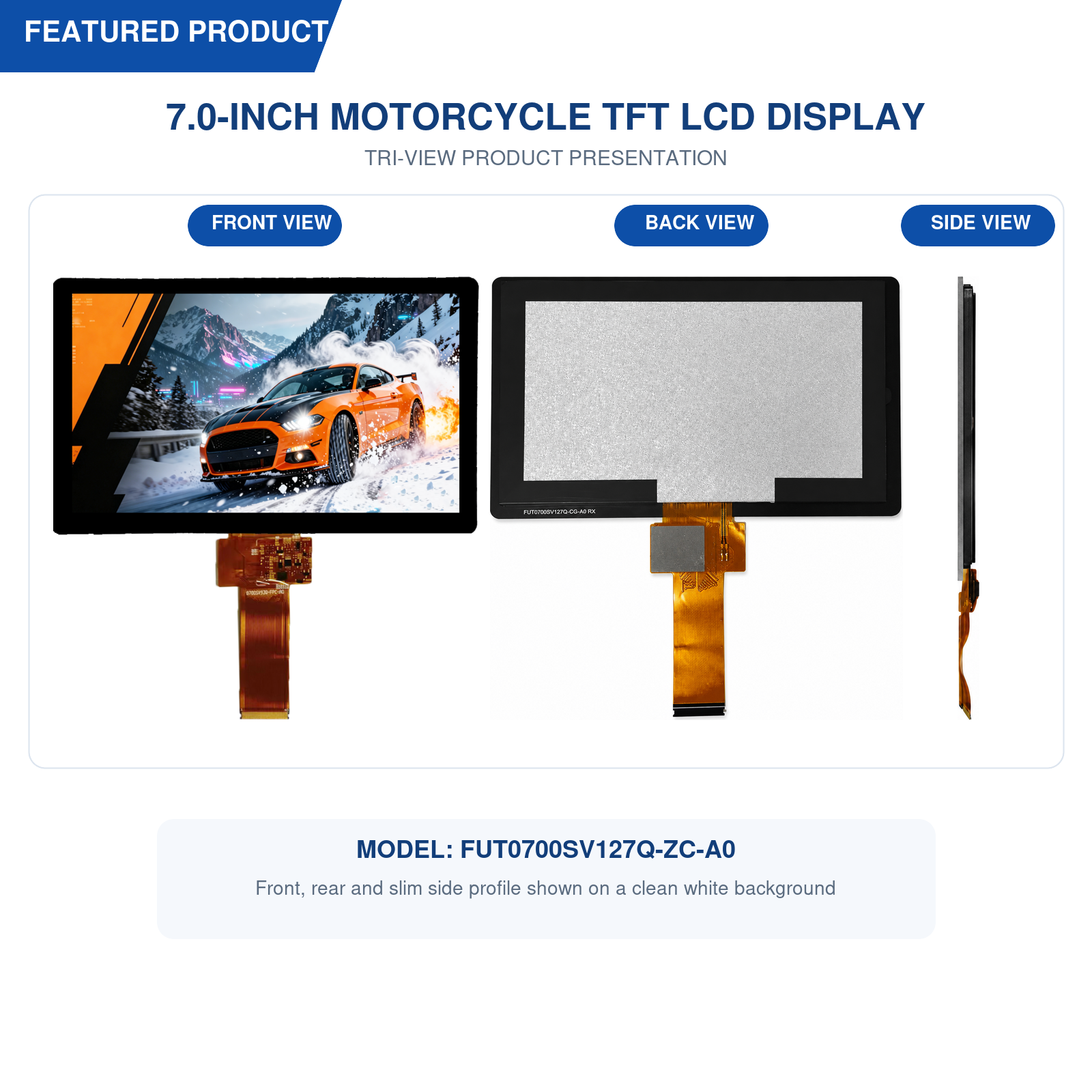

The FUT0700SV127Q-ZC-A0 is a 7.0-inch high-brightness TFT LCD module developed for outdoor vehicle dashboard applications. With a 1024 × 600 resolution and brightness exceeding 1000 nits, it provides clear and vivid image visibility under strong ambient light and sunlight.

Its wide operating temperature range and customizable cover-glass options make it suitable for two-wheeler motorcycles, electric scooters, electric tricycles and other outdoor vehicle instrument systems.

Key Features

• 7.0-inch TFT LCD display
• 1024 × 600 resolution
• 1000+ nits high brightness
• Sunlight-readable outdoor performance
• RGB 24-bit interface
• Operating temperature: -30°C to +85°C
• Storage temperature: -30°C to +85°C
• Optional AG anti-glare coating
• Optional AF anti-fingerprint coating
• Selectable 1.8–2.9 mm cover-glass thickness
• UV-resistant cover-glass printing
• Custom logo, barcode, model number and FPC marking
• OEM and ODM customization support

Product Specifications

Model: FUT0700SV127Q-ZC-A0
Display Size: 7.0 inches
Display Type: TFT LCD
Resolution: 1024 × 600 pixels
Brightness: 1000+ nits
Interface: RGB 24-bit
Operating Temperature: -30°C to +85°C
Storage Temperature: -30°C to +85°C
Cover Glass Thickness: 1.8–2.9 mm selectable
Surface Treatment: AG anti-glare and AF anti-fingerprint optional

AG Anti-Glare and AF Anti-Fingerprint Cover Glass

The optional AG anti-glare surface treatment helps diffuse strong light reflections and improves screen readability in bright outdoor environments.

The optional AF anti-fingerprint coating helps reduce fingerprints, oil marks and surface smudges, keeping the cover glass cleaner during frequent touch operation.

UV-Resistant Materials for Outdoor Applications

UV-resistant cover-glass printing and optical bonding materials can be selected for outdoor vehicle applications. These materials help reduce yellowing, fading and bonding degradation caused by long-term exposure to sunlight.

Application Scenarios

• Motorcycle digital dashboards
• Two-wheeler instrument clusters
• Electric scooter displays
• Electric three-wheeler dashboards
• Outdoor vehicle HMI systems
• Custom automotive instrument panels

Customization Options

We provide customized TFT LCD solutions according to the customer’s product structure and application requirements, including:

• Cover-glass size, shape and thickness
• Black border and decorative printing
• AG and AF surface treatments
• Custom logos and model numbers
• Barcode and traceability markings
• FPC shape, length and marking
• Brightness and backlight adjustment
• Touch-panel integration
• UV-resistant OCA optical bonding

Why Choose Future Displays?

Future Displays has more than 20 years of experience in LCD and LCM development and manufacturing. We support customized display projects with engineering assistance, quality control and stable mass-production capabilities.

Contact us with your drawing, interface requirements, operating environment and estimated quantity to discuss a customized display solution.
